• Copper tube manufactured to ASTM B280, EN 12735-1 AND AS/NZS 1571

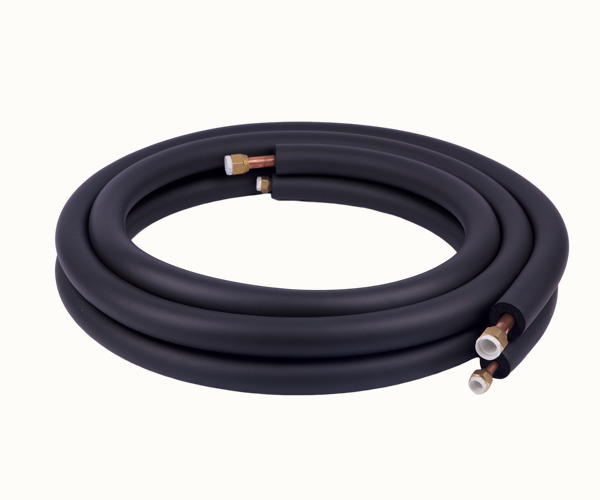

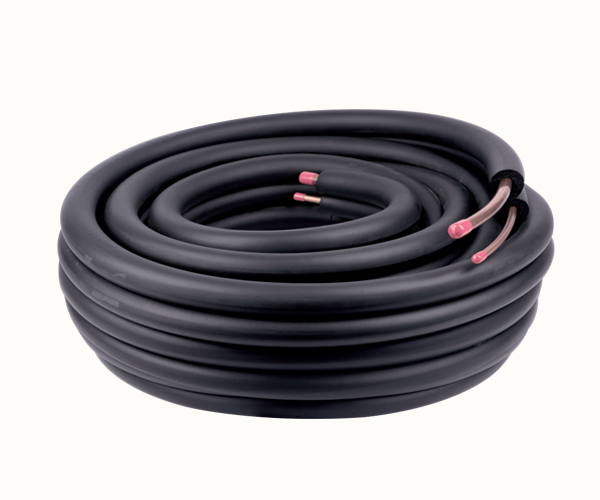

• Copper pipe with closed cell nitrile rubber foam
• Suitable for refrigerants R410A, R32, R22, R407C etc.
• Good for VRF & VRV system
Features：
• Seamless tubes for air-conditioning and refrigeration field.
• Available in 13mm and 19mm wall thickness to prevent condensation in high humidity areas.
• Reduction of installation time
• Nitrile rubber foam are more widely used in construction projects
• All sizes suitable for all refrigerants including R410A, R32, R22, R407C etc
Copper Tube Material ：
• Copper tube manufactured to ASTM B280, EN 12735-1 AND AS/NZS 1571
• Chemical composition copper 99.9% min, Phosphorus 0.015% min. - 0.040% max.
| Insulation Properties | |
| Material | Closed cell elastomeric nitrile rubber foam |
| Thermal Conductivity | Below 0.033 kcal/mhrC |
| Surface Density | 60-70kg/m3 |
| Water Vapour Permeability | Below 1.96x10-11 g/m.s.Pa |
| Working Temperature | -50 to 105˚C |
| Dimentions | ||||
| Part Number | Copper Tube O.D (inch) | Insulation Thickness (mm) | Copper Tube O.D X Wall Thickness (mm) | Length(m) |
| XLCB1438 | 1/4-3/8 | 9/13/19/25 | 6.35 x 0.81 – 9.52 x 0.81 | 3,4,5...50 |
| XLCB1412 | 1/4 -1/2 | 9/13/19/25 | 6.35 x 0.81 – 12.70 x 0.81 | 3,4,5...50 |
| XLCB1458 | 1/4-5/8 | 9/13/19/25 | 6.35 x 0.81 – 15.88 x 1.02 | 3,4,5...50 |
| XLCB3858 | 3/8 -5/8 | 9/13/19/25 | 9.52 x 0.81 – 15.88 x 1.02 | 3,4,5...50 |
| XLCB3834 | 3/8-3/4 | 9/13/19/25 | 9.52 x 0.81 – 19.05 x 1.14 | 3,4,5...50 |
| XLCB1234 | 1/2 -3/4 | 9/13/19/25 | 12.70 x 0.81 – 19.05 x 1.14 | 3,4,5...50 |
