• Copper tube manufactured to ASTM B280, EN 12735-1 AND AS/NZS 1571

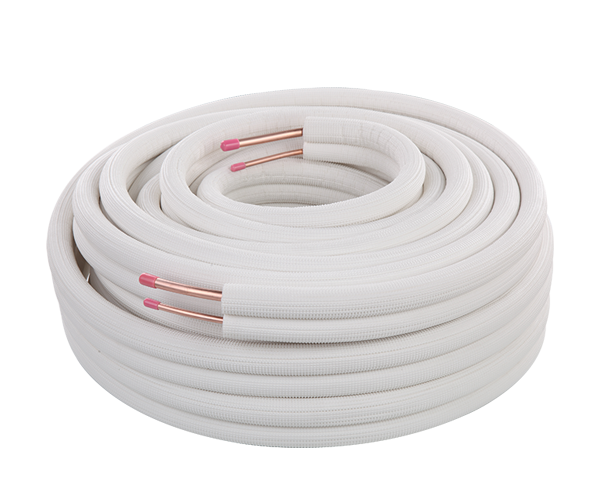

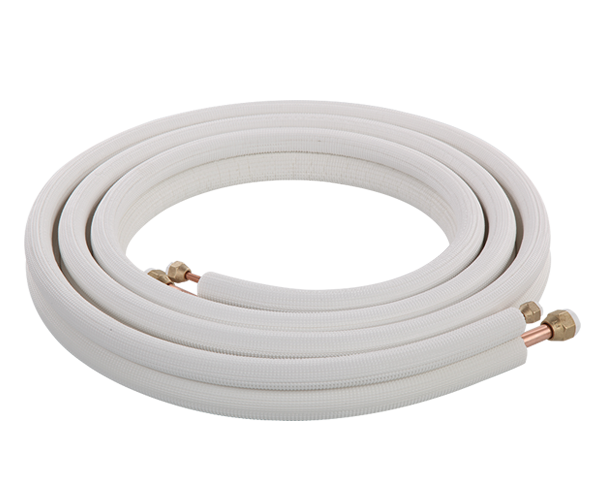

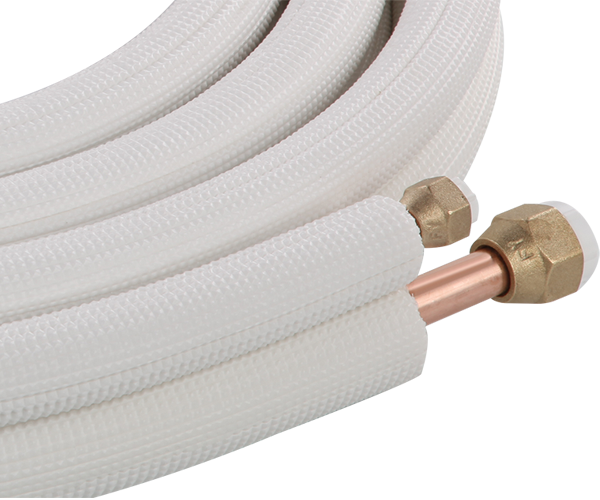

• Copper pipe with double layered cross linked closed cell polyethylene foam
• Suitable for refrigerants R410A, R32, R22, R407C etc.
• Single or Pair roll options available
Features：
• Seamless Tubes for Air-Conditioning and Refrigeration field.
• Easy to push through tight spaces without being torn.
• Reduction of installation time
• Tough and durable three layered insulation providing enhanced vapour seal and easy installation
• All sizes suitable for all refrigerants including R410A, R32, R22, R407C etc
Copper Tube Material ：
• Copper tube manufactured to ASTM B280, EN 12735-1 AND AS/NZS 1571
• Chemical composition copper 99.9% min, Phosphorus 0.015% min. - 0.040% max.
| Dimentions | ||||
| Part Number | Copper Tube O.D (inch) | Insulation Thickness(mm) | Copper Tube O.D X Wall Thickness (mm) | Length(m) |
| XLCW1438 | 1/4-3/8 | 8 x 8 | 6.35 x 0.76 – 9.52 x 0.81 | 3,4,5...50 |
| XLCW1412 | 1/4-1/2 | 8 x 8 | 6.35 x 0.76 – 12.70 x 0.81 | 3,4,5...50 |
| XLCW1458 | 1/4-5/8 | 8 x 8 | 6.35 x 0.76 – 15.88 x 0.89 | 3,4,5...50 |
| XLCW3858 | 3/8-5/8 | 8 x 8 | 9.52 x 0.81 – 15.88 x 0.89 | 3,4,5...50 |
| XLCW3834 | 3/8-3/4 | 8 x 8 | 9.52 x 0.81 – 19.05 x 0.89 | 3,4,5...50 |
| XLCW1234 | 1/2-3/4 | 8 x 8 | 12.70 x 0.81 – 19.05 x 0.89 | 3,4,5...50 |
