• C12200,Cu 99.9% min
• Soft annealed
• High cleanliness
• Certificates of different standards
Application: Air Conditioning & Refrigeration Field Service

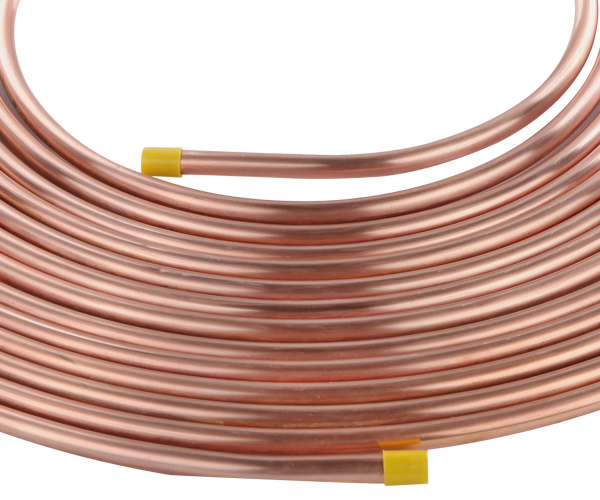

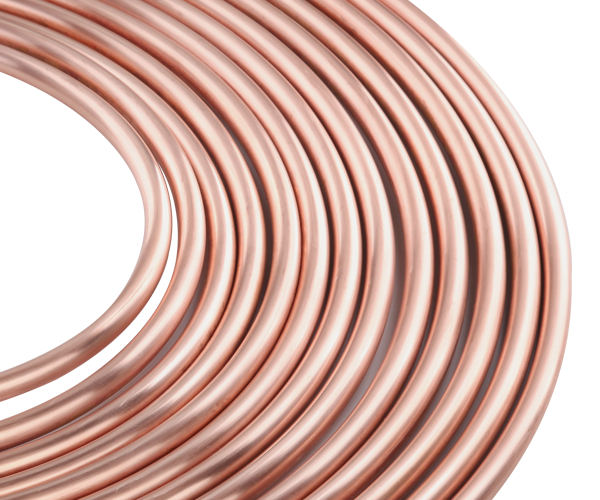

Pancake Copper Tube intended for use in the connection, repairs, or alternations of air conditioning or refrigerator units in the field. It is in accordance with specifications given in ASTM Standard (B88,B280) and European Norm(EN12735) and other general norms. According to EN standard, Pancake tube has high heat exchange efficiency, easy welding, corrosion resistance and good bending properties for using in utility supplies such as plumbing installations,gas transport networks, air conditioning systems and refrigerant piping. These products are usually available in annealed form. All coils are cleaned and capped to keep them out of any contamination. These products are individually labeled, shrink-wrapped and packed in cardboard boxes for easy handling and distribution.
| General Specifications | |||||||
| Sizes | Coil Length | Temper Designation | |||||
| Outside Diameter 3/16"-7/8" (4.00mm-22.22mm) | Wall Thickness 0.30mm-1.50mm | 50'-180' (and/or 15-50 meter) | Soft Annealed(O60) | ||||
| (ASTM B280,EN 12735-1,AS/NZS1571) | |||||||
| Thickness O.D. | 0.30 mm | 0.35 mm | 0.40 mm | 0.45 mm | 0.50 mm | 0.55 mm | 0.60 mm | 0.65 mm | 0.70 mm | 0.75 mm | 0.80 mm | 1.00 mm | 1.20 mm | 1.50 mm |
| 4.00 | O | O | O | |||||||||||
| 4.76(3/16inch) | O | O | O | O | O | O | O | O | O | O | O | |||
| 6.00 | O | O | O | O | O | O | O | O | O | O | O | |||
| 6.35(1/4inch) | O | O | O | O | O | O | O | O | O | O | O | O | ||
| 7.94(5/16inch) | O | O | O | O | O | O | O | O | O | O | O | O | O | |
| 8.00 | O | O | O | O | O | O | O | O | O | O | O | O | O | |
| 9.52(3/8inch) | O | O | O | O | O | O | O | O | O | O | O | O | O | O |
| 12.00 | O | O | O | O | O | O | O | O | O | O | O | O | O | |
| 12.70(1/2inch) | O | O | O | O | O | O | O | O | O | O | O | O | O | |
| 14.00 | O | O | O | O | O | O | O | O | O | O | O | O | ||
| 15.00 | O | O | O | O | O | O | O | O | O | O | O | O | ||
| 15.88(5/8inch) | O | O | O | O | O | O | O | O | O | O | O | O | ||
| 16.00 | O | O | O | O | O | O | O | O | O | O | ||||
| 19.05(3/4inch) | O | O | O | O | O | O | O | O | ||||||
| 22.22(7/8inch) | O | O | O | O | O | O |
